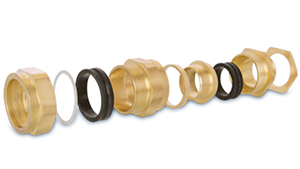

E1W Type Cable Glands
| Size | 20 mm to 90 mm S & L |
| Standard | EN 50262 : 1999 |
| Application | For indoor or outdoor use with all types of SWA Cable |
| Function | Provide for Environmental Seal in the Cable Outer sheath. Also, provide mechanical cable retention & electrical continuity |
| Material | Brass BS 2874 CZ121 Pb3 |
| Optional Threads | METRIC, NPT, BSP, PG or as specified |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Operating Temp. | Standard seals -20 C to +80 C |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
| TECHNICAL DATA | ||||||
|---|---|---|---|---|---|---|
| SIZE | THREAD | LENGTH | A | B | A/F | A/C | 20S | M20 | 15.00 | 12.00 | 16.00 | 22.20 | 24.20 |
| 20L | M20 | 15.00 | 14.00 | 20.50 | 27.00 | 29.50 |
| 20/16 | M20 | 15.00 | 9.00 | 14.00 | 22.20 | 24.20 |
| 25S | M25 | 15.00 | 18.50 | 24.50 | 33.50 | 37.50 |
| 25L | M25 | 15.00 | 20.50 | 27.50 | 36.00 | 40.00 |
| 32S | M32 | 10.40 | 24.30 | 34.00 | 43.00 | 48.50 |
| 32L | M32 | 15.00 | 26.27 | 34.20 | 43.50 | 48.50 |
| 40S | M40 | 15.00 | 29.50 | 41.50 | 52.00 | 58.00 |
| 40L | M40 | 15.00 | 33.00 | 41.50 | 52.00 | 58.00 |
| 50S | M50 | 15.00 | 38.50 | 47.00 | 59.00 | 65.50 |
| 50L | M50 | 15.00 | 44.30 | 53.20 | 64.20 | 71.50 |
| 63S | M63 | 20.00 | 50.20 | 62.50 | 73.50 | 81.50 |
| 63L | M63 | 20.00 | 56.20 | 65.50 | 79.50 | 89.00 |
| 75S | M75 | 20.00 | 62.00 | 74.00 | 87.00 | 97.00 |
| 75L | M75 | 20.00 | 68.00 | 78.20 | 97.00 | 108.00 |
| 90L | M90 | 18.50 | 80.00 | 91.00 | 103.50 | 114.50 |
Also available in Kit Packaging and also as per the specification
